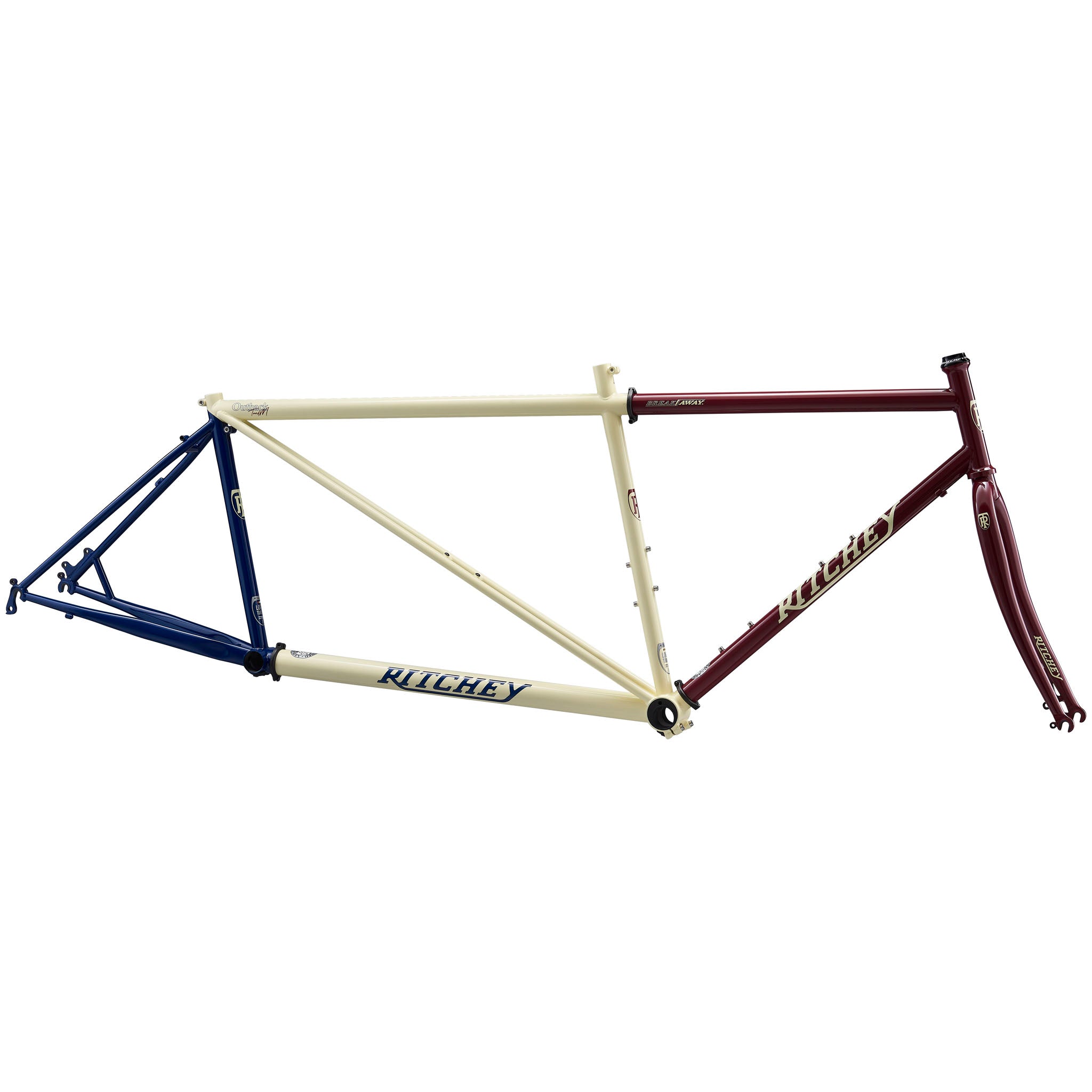

Ritchey Break-Away TandM Tandem Frameset Large
Couldn't load pickup availability
Fully assembled delivery
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?
- Road-oriented tandem frame
- Fits up to 43mm tires, making it capable of handling gravel roads
- Triple-butted Ritchey Logic frame and fork tubing TIG welded
- Fender mounts and the ability to carry five bottle cages
- Multi-purpose mounts on the fork
- Designed for standard tandem gearing - stoker crank: 52/39/30T
- IS51 brake mounts / 203 max rotor size
- 10x145mm rear and 9x100mm front dropouts. Use RC5728 as ideal wheelset
- Includes two Break-Away travel cases with padding
- Hinge clamps, rear brake cable connector and derailleur cable connectors also included
- Frame weight: 5.02kg (3 sections of frame assembled in one piece)
- Fork weight: 1700g (uncut steerer)
| Size | Large |
| C | C)-590mm |
| Chainstay | 435mm |
| Head Angle | 71.5 Deg |
| Seat Angle | 73.5 Deg |
| Headset | IS42/28.6 / IS42/30 |
| Bottom Bracket | 68mm |
| Seatpost | 27.2mm |
| Front Derail | 28.6mm |
| BB Drop | 70mm |
| Stand Over | 822mm Captain/756mm Stoker |
| Dropout | 10x145mm |
| Color | Merlot |
We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery. The shipping cost for bikes is €20.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
